  • Micro Beast fra www.el-fly.dk

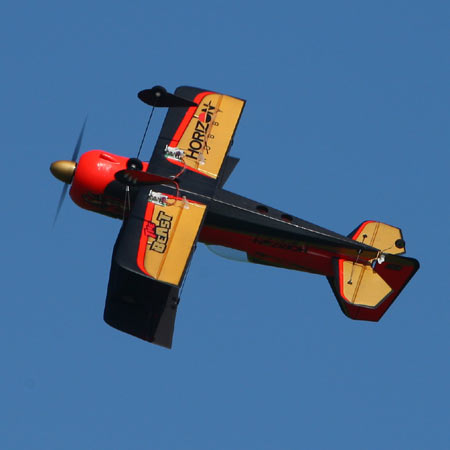

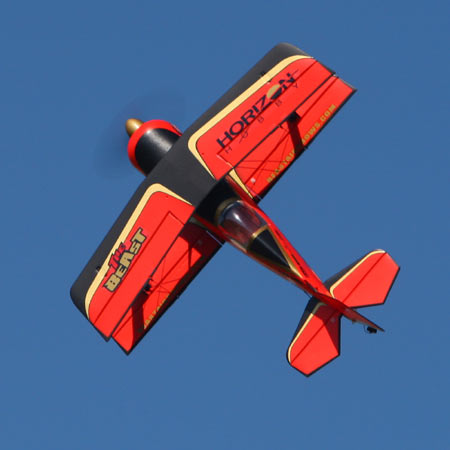

    Det er mer stor glede (siden jeg jobber med den store Beast) at vi skal teste nye Beast UMX BNF fra www.el-fly.dk

    Legger ved litt spesifikasjoner fra Horizon:

    Key Features

    * Flies with the feeling of a larger scale aerobatic plane
    * Completely built and flight ready just bind to any DSM2 aircraft transmitter with dual rates and expo
    * Equipped with a brushless 180 outrunner motor
    * Small enough for experienced pilots to fly in the backyard
    * Includes 2S Li-Po flight battery and DC Li-Po charger

    Overview

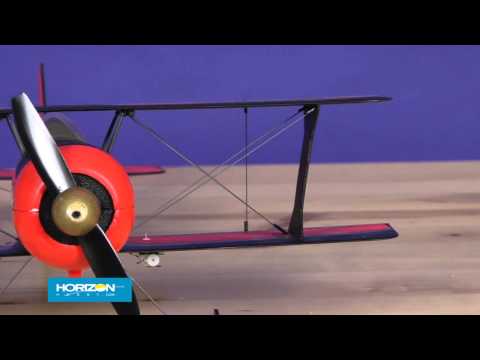

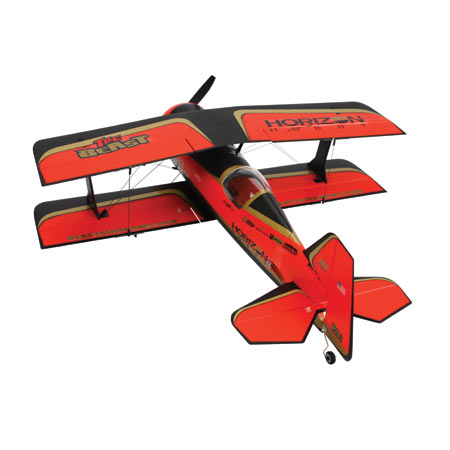

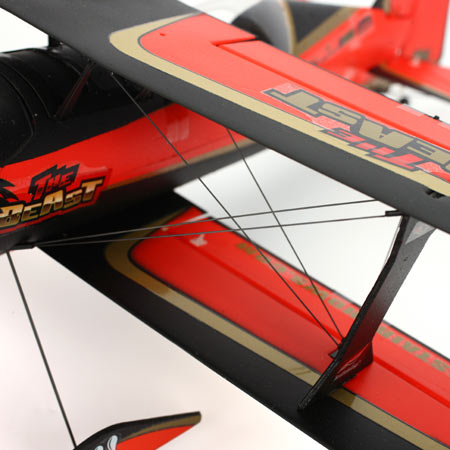

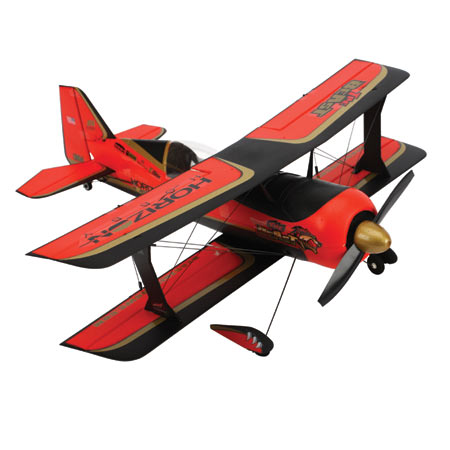

    Designed by aerobatic world champion Quique Somenzini, the Ultra Micro eXtreme (UMX) Beast is a thrilling small-scale recreation of one of the most awe inspiring airplanes on the airshow circuit today. And, like the full-scale Beast, it delivers high-powered aerobatic excitement that will put a grin on the face of any intermediate to experienced RC pilot.

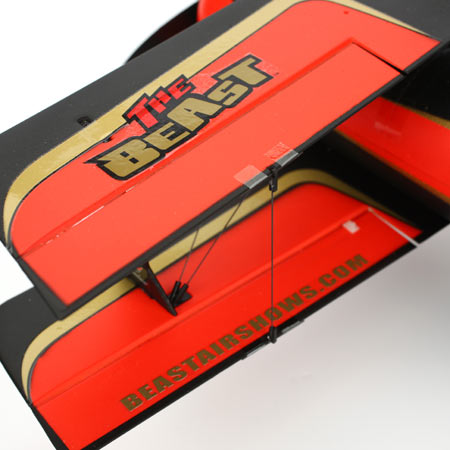

    At the heart of its phenomenal performance is a brushless motor, propeller and battery combination that delivers a spine-tingling thrust-to-weight ratio. This incredible power output, combined with its well-balanced controls and carbon reinforced wing, allow the UMX Beast to achieve a level of precision and performance that has more in common with its giant-scale Hangar 9 twin than any ultra micro youve flown before.

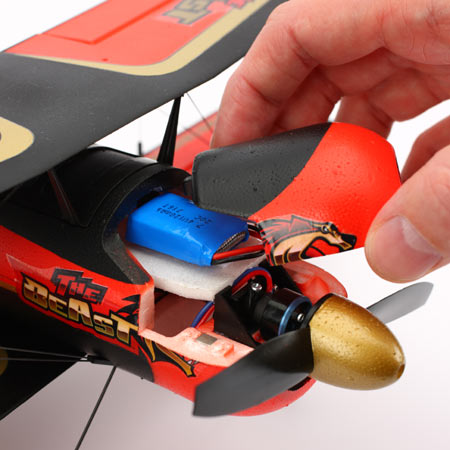

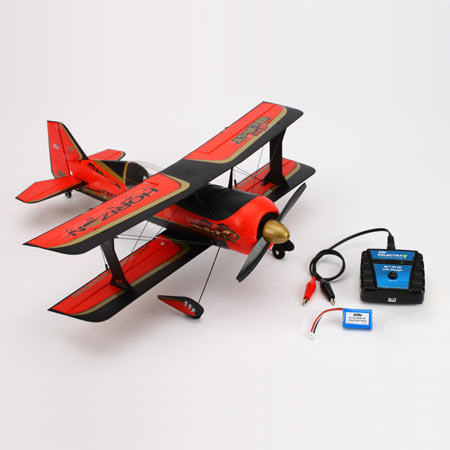

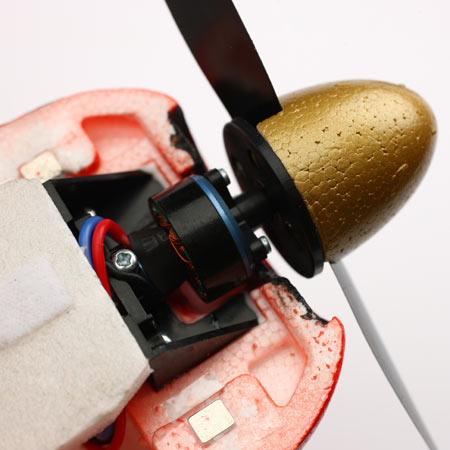

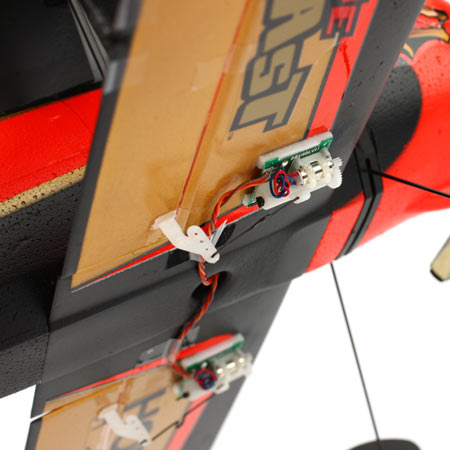

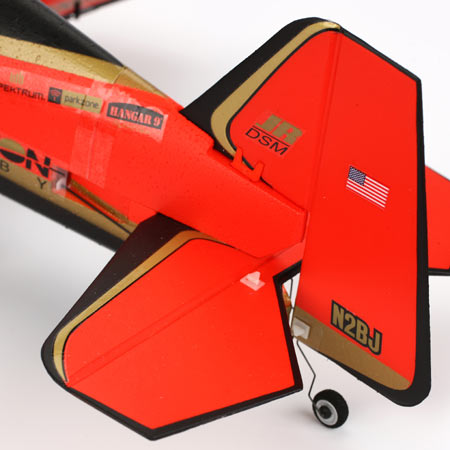

    The UMX Beast BNF comes completely assembled with a BL180 brushless outrunner motor and Spektrum AR6400LBL Ultra Micro DSM2 Receiver/BL ESC installed. Built-in long-throw servos on the AR6400LBL drive the elevator and rudder while two independent Spektrum AS2000L long-throw ultra micro servos drive the ailerons. A 2S 7.4V 120mAh 20C Li-Po battery and DC Li-Po charger are also included.
    Needed to Complete

    A 4+ Channel DSM2 Transmitter (with Dual Rates and Exponential programming recommended)

    Specs
    Wingspan: 14.7 in (374mm)
    Overall Length: 15.7 in (400mm)
    Wing Area: 83.8 sq in (5.40 sq dm)
    Flying Weight: 2.36 oz (67g)
    Motor Size: 180BL Brushless Outrunner, 2300Kv (included)
    Radio: AR6400LBL 6CH Brushless ESC Receiver (included)
    Trim Scheme Colors: Black, Red, Gold
    CG (center of gravity): 18mm from Leading Edge of Bottom Wing
    Prop Size: 5 x 2.75 in (127mm x 70mm)
    Recommended Battery: 2S 7.4V 120mAh Li-Po (included)
    Aileron: Yes
    Elevator: Yes
    Rudder: Yes
    Throttle: Yes
    Flaps: No
    Retracts: No
    Approx. Flying Duration: 5 minutes
    Scale: Ultra Micro
    Charger: Celectra 2S 7.4V DC Li-Po Charger (included)
    Steering: Yes
    Experience Level: Intermediate
    Recommended Environment: Indoor/Outdoor
    Is Assembly Required: No
    Attached Files
    ____________________________
    Alf Wilhelm Hansen www.flygal.no

  • #2


    Last edited by xilian; 25-08-10, 13:43.
    ____________________________
    Alf Wilhelm Hansen www.flygal.no

    Comment


    • #3
      Denne blir morsom se.
      rjan Pettersen
      Trenger du hjelp til oppsett av helikopter i Troms, bare ta kontakt.

      Comment


      • #4
        Finner den ikke noe sted p sia til el-fly?
        Jostein Gjelstad - Horten - Condor Mfk - jostein@gjelstad.net - http://www.cmfk.no

        Comment


        • #5
          Det er nok litt tidlig enn. Er akkurat released fra Horizon.

          Jeg kommer med direktelink s fort den er der
          ____________________________
          Alf Wilhelm Hansen www.flygal.no

          Comment


          • #6


            ____________________________
            Alf Wilhelm Hansen www.flygal.no

            Comment


            • #7

              Sjekk all informasjon hos Electric Flight her!
              ____________________________
              Alf Wilhelm Hansen www.flygal.no

              Comment


              • #8
                http://www.el-fly.dk/startframe.htm?/pkz-beast.asp
                I find that a Ducks opinion of me is very much influence`d over whether or not i have bread with me

                Comment


                • #9
                  100 kroner billigere hvis du stikker innom smallsize. http://shop.smallsize.no/product_inf...aa85e9504a5d42 . Kjenner jeg fikk litt lyst til innom der i morgen.

                  Comment


                  • #10
                    s hvis man ikke har noe spektrum sender s er det ikke noe poeng i kjpe denne?..
                    syntes det er like gy se p som det er fly
                    carl goldberg ultimate
                    DJI S900
                    piper pawnie el kjrre


                    Futaba 14SG
                    diverse epp tjafs
                    Per-Egil Furuseth

                    Comment


                    • #11
                      Jeg har veteranene lyst p.
                      Har dx6i liggende ...


                      Sent from my iPhone using Tapatalk
                      Tom I. Arntsen

                      Comment


                      • #12
                        hm, kjipt hvis mottaker som flger med bare fungerer med spektrum sendere. Jeg har jr sender. Regner med jeg m bytte til en annen mottaker da. Noe forslag til hva man kan bruke evt?
                        Ole Kr Follstad

                        BVM T33 Thunderbird, Jetcat 80se med kerostart
                        PilotRc Sbach 342 40%, DA170, Proflow canistere
                        EF Extra 300 60"
                        EF Extra 300 104" Eme120
                        GB Yak 55 2,2m, Dle55RA
                        ESM Bearcat, NGH 38cc
                        Phoenix p51D Mustang, Dle55
                        Phoenix K8b, 1:2,5 6m
                        Hangar 9 Piper cub 1\4
                        Ask 21 1:3 5,7m helkompositt

                        Comment


                        • #13
                          Jeg har en JR DSX9, den fungerer utmerket p Vapor, Blade msr, og sukhoien. Alle er BNF kjpt fra smallsize

                          Comment


                          • #14
                            Og min er satt opp p JR 12X, funker vel med alt av spektrum/JR DSM?

                            Sent from my Desire HD using Tapatalk
                            ____________________________
                            Alf Wilhelm Hansen www.flygal.no

                            Comment
