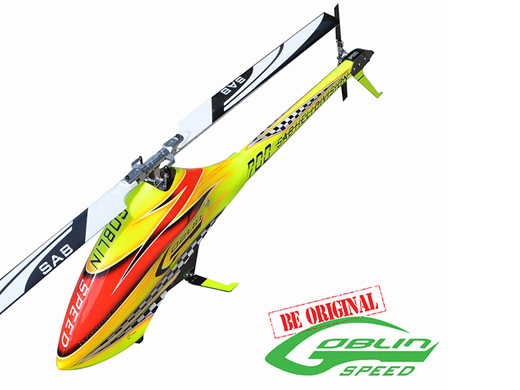

Ingen som har fått med seg denne da? Ser jo rå ut =)
9.999,99 fra RCPro er vel ikke så hoppende ille heller
9.999,99 fra RCPro er vel ikke så hoppende ille heller
General Specifications | Electronic Specifications |

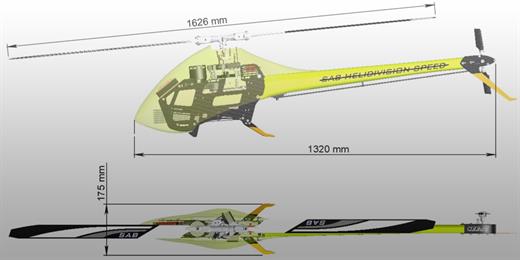

• Main rotor diameter: 1626 mm • Main blades: 720 mm • Main blades optimized to be extremely stable at high speeds • Tail rotor diameter: 283 mm • Tail blades: 104 mm rounded trip optimized for high speed • Weight including all electronics excluding batteries: 4010 g • Ratio 11.9 / 8.5 :1 (22T pulley included in kit for 9.8:1 ratio) |
• Cyclic Servos: Standard size 40 mm • Tail Servo: Standard size 40 mm • Typical Speed controller: Kontronik Kosmik 160/200, YGE 160-320 • Typical Motor: Pyro 800-850, Scorpion 4535/40 - Max. 65 mm diameter x 80 mm height • Battery compartment: 75 x 58 x 350mm Kit Includes: • 22T motor pulley (other pulley sizes available) • 2 battery tray • 720 mm main Speed blades • 104 mm rounded tip tail blades |
The following motor pulleys are available: |
18T Pulley (P/N H0175-18-S) Ratio 11.9:1 19T Pulley (P/N H0175-19-S) Ratio 11.3:1 20T Pulley (P/N H0175-20-S) Ratio 10.7:1 21T Pulley (P/N H0175-21-S) Ratio 10.2:1 |
22T Pulley (P/N H0175-22-S) Ratio 9.8:1 23T Pulley (P/N H0175-23-S) Ratio 9.3:1 24T Pulley (P/N H0175-24-S) Ratio 8.9:1 25T Pulley (P/N H0175-26-S) Ratio 8.6:1 |
